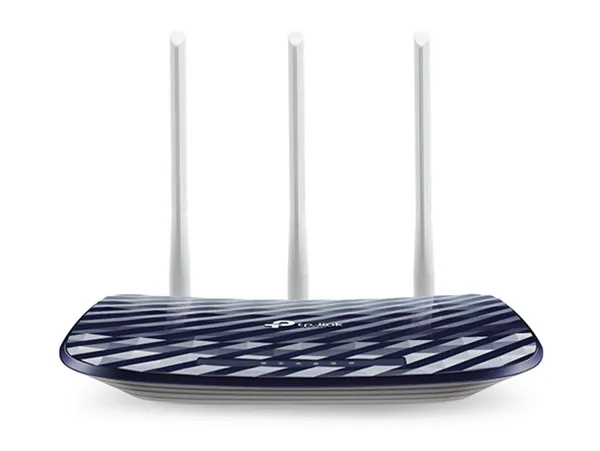

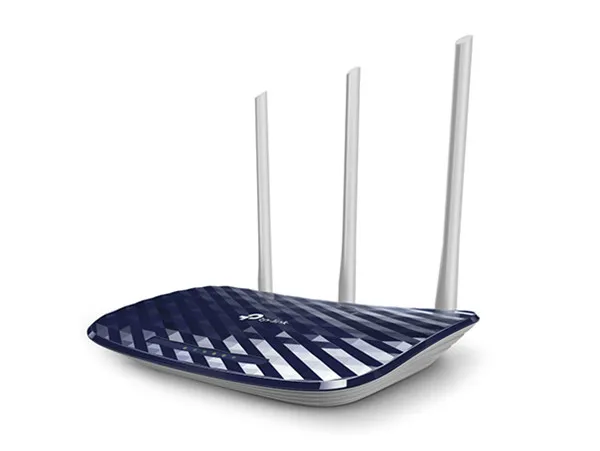

TP-Link Archer C20 AC750 Dual Band Router

TP-Link Archer C20 AC750 Dual Band Router

The TP-Link Archer C20 AC750 router offers fast dual-band connectivity, with a maximum speed of 433 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band. Strong and consistent signal coverage is provided by its dual-band antennas. Network management is made simple by adaptable wireless features and button controls. Both guest networks and complete firewall security are supported. Because access control capabilities make precise network management possible, they are a dependable option for networks in homes and small offices.

Specifications

1. Data Rate:

   - 5GHz: Up to 433Mbps

   - 2.4GHz: Up to 300Mbps

2. Antenna:

   - Two dual band fixed antennas

3. Buttons:

   - WPS/Wi-Fi Button

   - Reset Button

   - Power On/Off Button

4. Frequency:

   - 2.4GHz and 5GHz

5. Wireless Functions:

   - Enable/Disable Wireless Radio

   - WDS Bridge

   - WMM

   - Wireless Statistics

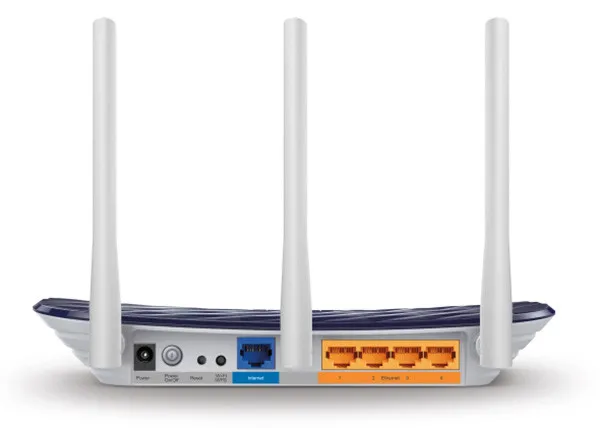

6. Interface:

   - 4 10/100Mbps LAN ports

   - 1 10/100Mbps WAN port

7. Network Standard:

   - IEEE 802.11ac/n/a 5GHz

   - IEEE 802.11b/g/n 2.4GHz

8. Encryption:

   - 64/128-bit WEP

   - WPA / WPA2

   - WPA-PSK/ WPA2-PSK encryption

9. Ports:

   - 4 x LAN ports

   - 1 x WAN port

10. Firewall Security:

    - DoS

    - SPI Firewall

    - IP Address Filtering/MAC Address Filtering/Domain Filtering

    - IP and MAC Address Binding

11. Guest Network:

    - 2.4GHz guest network × 1

    - 5GHz guest network × 1

12. Access Control:

    - Parental Control

    - Local Management Control

    - Host List

    - Access Schedule

    - Rule Management

13. Operating System Support:

    - Windows 10/8.1/8/7/Vista/XP

    - Mac OS or Linux-based operating system

14. Power Source:

    - Power Mode: 9V/0.6A(EU), 9V/0.85A(US)

15. Physical Dimensions:

    - Shell Color: Black

    - Dimensions: 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)

Feature

1.      High-Speed Dual Band Connectivity:

Experience fast and reliable wireless connections with the TP-Link Archer C20 AC750 Router, offering dual band technology with speeds up to 433Mbps on the 5GHz band and 300Mbps on the 2.4GHz band.

2.      Dual Band Antennas:

Equipped with two dual band fixed antennas, the Archer C20 ensures optimal signal strength and coverage, delivering a stable and consistent wireless performance.

3.      Convenient Button Controls:

Easily set up and manage your network with the WPS/Wi-Fi button, reset button, and power on/off button, providing convenient control at your fingertips.

4.      Versatile Wireless Functions:

Enable or disable wireless radio, establish WDS bridges, utilize WMM (Wi-Fi Multimedia), and monitor wireless statistics to customize and optimize your wireless network.

5.      Comprehensive Firewall Security:

 Benefit from DoS (Denial of Service) and SPI (Stateful Packet Inspection) firewall protection, along with IP/MAC address filtering and domain filtering, for a secure network environment.

6.      Guest Networks:

Set up separate guest networks on the 2.4GHz and 5GHz bands, allowing visitors to access the internet while keeping your main network secure.

7.      Access Control and Management:

Exercise control over your network through features such as parental control, local management control, host list management, access schedule settings, and rule management for optimized network administration.
